3200 Egg Incubator Kit (1600 Set + 1600 Hatch)

SKU: T1600SH-KIT

Low Cost, Energy Efficient = You Save $ Every Hatch
Automatic & Self-Regulated Temperature and Humidity for Commercial Use
ABS Plastic Walls = Easy Cleaning

Freight Shipping Calculated at Checkout

30 Day Returns - Learn More

1 Year Warranty - Learn More

Customize My Incubator

Mix-n-Match Trays!

Our T Series incubators can be customized based on the eggs you hatch. This is important if you hatch a variety of eggs. Contact us and we will create your dream setup.

_____

Contact Us:

Phone: (800) 511-1369

Email: info@hatchingtime.com

_____

Customization Request Form:

View Form

$7,499.99 ~~$8,299.98~~

Description

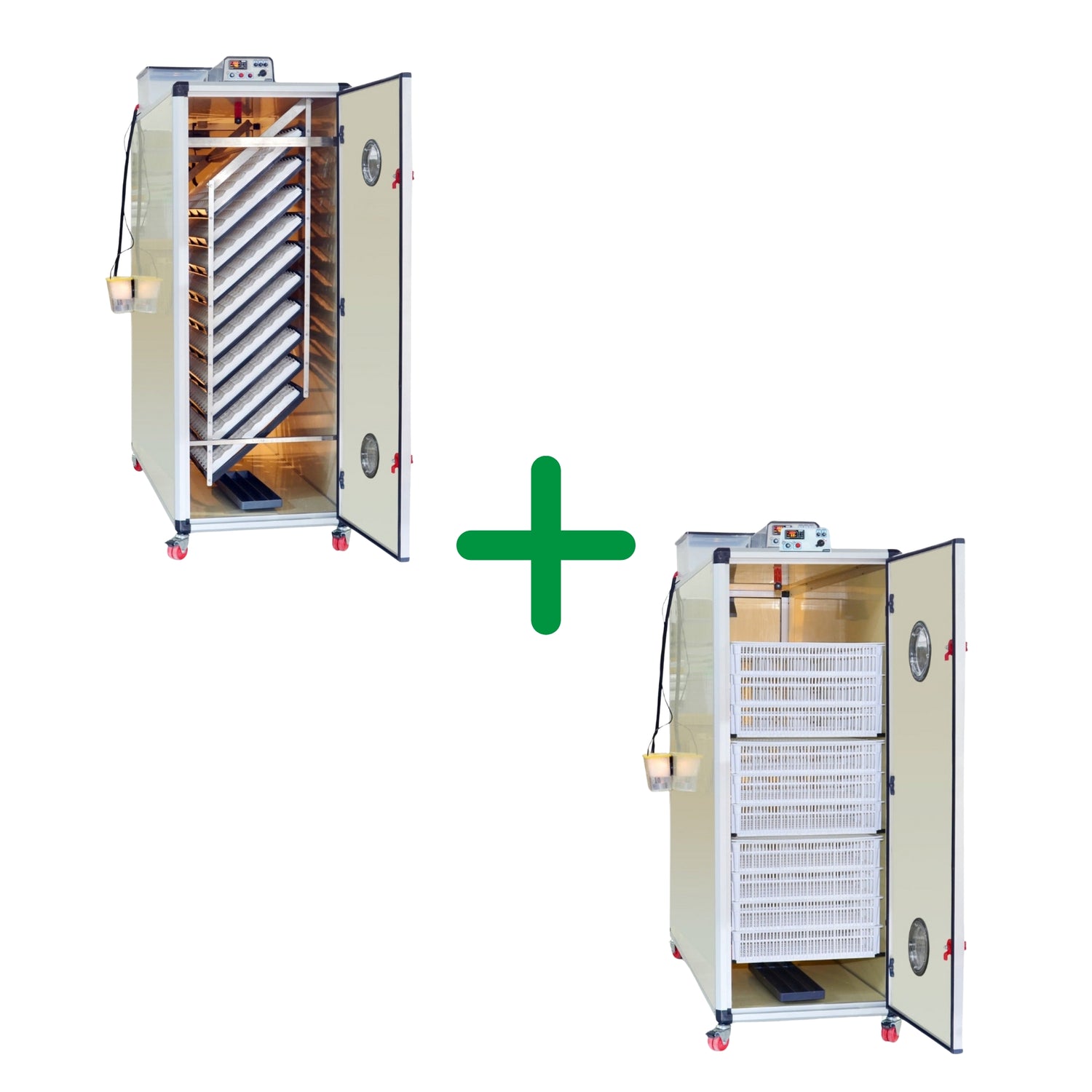

This kit pairs a Cimuka T1600S automatic setter with a T1600H dedicated hatcher. Set up to 1,600 chicken eggs while a separate batch of up to 1,600 eggs completes hatch-out.

Included equipment

T1600S setter with 20 TR80 chicken egg setter trays and automatic, vibration-free TurnX egg turning.
T1600H dedicated hatcher with 20 CS80Y hatching baskets.

Both units regulate temperature and humidity using DiGiFEEL controls, Humisonic humidification and AirRoute ventilation. Internal and room-condition alarms help monitor the environment. Maintain the water supply and follow the incubation manual for your species. The setter also includes Active Periodic Cooling.

Egg capacity

Capacity for each unit depends on species and tray configuration: chicken 1,600; quail 4,160; partridge 3,080; pheasant 2,160; turkey or duck 1,260; goose or peacock 800. The setter includes chicken trays by default. Other species require suitable species-specific trays or adjustable FLX80-ST trays.

Specifications

Each cabinet: 32.8 inches wide × 52.7 inches deep × 82.7 inches high.
T1600S setter: 309 lb; 450W average, 1,200W maximum.
T1600H hatcher: 287 lb; 425W average, 1,200W maximum.
Both units: 110V / 60Hz power.
Insulated ABS plastic walls and anodized aluminum frame, with front and rear access for cleaning.
Recommended location: indoors, preferably in a temperature-controlled room.

The cabinets come pre-assembled. Attach the top water tanks and side humidity devices before use. For assistance, call (800) 511-1369 or email support@hatchingtime.com.

Specifications

Brand: Hatching Time

Material: Insulated Walls: ABS Plastic - Frame: Anodized Aluminum

Assembly Required: Minimal

Recommended Location: Indoors, preferably a temperature-controlled room

Voltage:

Average Energy Consumption:

Max Wattage:

Dimensions & Weight

Unit: L () x W () x H ()

Box: L () x W () x H ()

Cabinet Size: L () x W () x H ()

Weight: 596 lb

Product Support

Questions? Contact Us

Capacity

____

Quail:

Partridge:

Pheasant:

Chicken:

Turkey:

Duck:

Goose:

Peacock:

____

Frequently Asked Questions About 3200 Egg Incubator Kit (1600 Set + 1600 Hatch)

What workflow is the 3200 Egg Incubator Kit (1600 Set + 1600 Hatch) designed to support?

It is designed for a two-stage process with eggs incubated in the T1600S setter and moved to the dedicated T1600H hatcher for the final hatch stage. Each unit holds up to 1,600 chicken eggs. This separation supports staggered batches and keeps hatching activity out of the setter.

How do I use the setter and hatcher in the 3200 Egg Incubator Kit (1600 Set + 1600 Hatch) together?

Keep eggs in the setter during the turning stage, then move them to the hatcher for the species-specific final hatch period. Follow the incubation schedule in the manual because transfer timing varies by bird species.

Can the 3200 Egg Incubator Kit (1600 Set + 1600 Hatch) incubate eggs other than chicken eggs?

Yes. The system can be configured for quail, partridge, pheasant, turkey, duck, goose, and peacock eggs as well as chicken eggs. The setter includes TR80 chicken trays by default. Other species require suitable species-specific trays or adjustable FLX80-ST trays. Control settings and capacity vary with egg size and species.

Does the 3200 Egg Incubator Kit (1600 Set + 1600 Hatch) turn eggs and regulate temperature and humidity automatically?

The setter uses automatic, vibration-free egg turning and the units regulate temperature and humidity with built-in controls and sensors. The hatcher provides a stable non-turning environment for the final stage, while the water supply still needs to be maintained.
